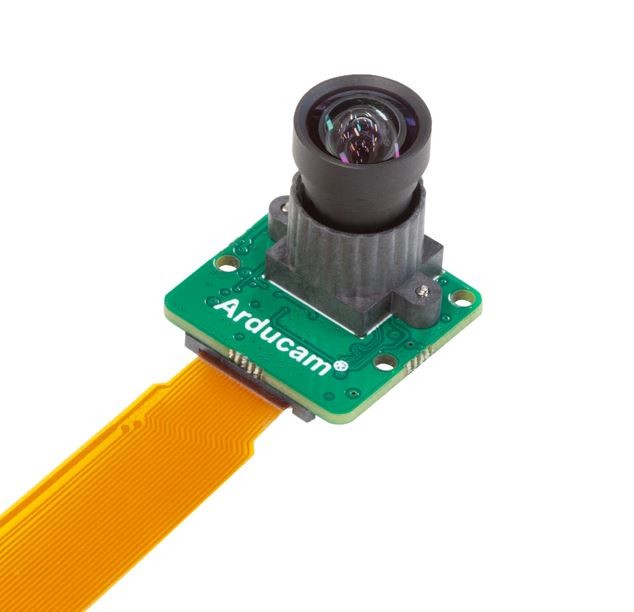

LUXONIS OAK-FFC-IMX477-M12 Camera module for OAK-FFC-3P, OAK-FFC-4P, and DepthAI RPi HAT baseboards.


Availability: In stock

SKU: A00443

'The OAK-FFC-IMX477-M12 is a carrier board for the Arducam IMX477 camera module, and is designed to be compatible with OAK-FFC-3P, OAK-FFC-4P, and DepthAI RPi HAT baseboards. In many applications, great color representation and the capability to digitally zoom is very important. So DepthAI was designed with this in mind to provide the option to have high-resolution, accurate color representation at high frame rates to boot. Specifications: Camera Sensor: IMX477 Optical Format: 1/2.3″ (diagonal 7.857mm) Resolution: 4056(H) x 3040(V) 12.3MP Pixel Size: 1.55um x 1.55um IR Sensitivity: Visible light Interface: 4-lane MIPI CSI-2 Maximum image transfer rate: 4K@60 fps Default Lens Mount: M12 Mount Lens Format: 1/2.3 inch Focal Length: 3.9mm Aperture (F): F2.8 Field of View (FOV): 75° (H) Mount: M12 Mount Back Focal Length: 4.49mm MOD: 0.1m Dimension: Φ14×18.67mm Weight: 5g Camera board Board Size: 24mm×25mm'
