Edimax IEEE 802.3at Gigabit PoE+ Injector 30W 100m, 100-240V AC, 50-60 Hz, 0.6A


Availability: In stock

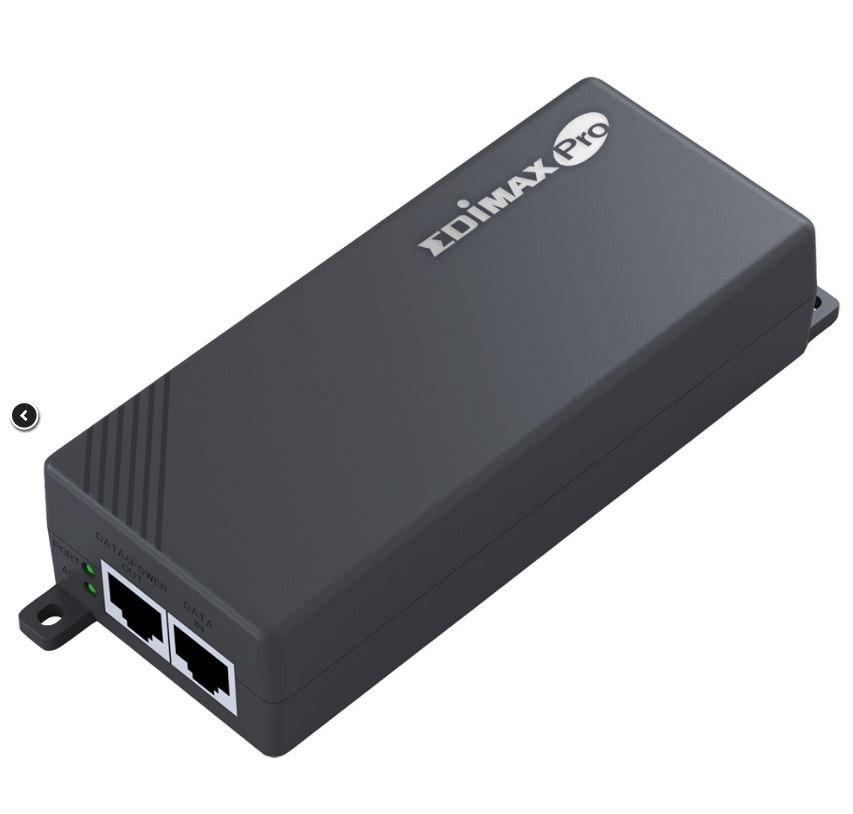

Edimax GP-101IT is a Power over Ethernet injector that not only delivers a cost-effective solution for power distribution, but also provides a seamless way of deployment on the existing LAN infrastructure. Complies with IEEE 802.3af and IEEE 802.3at Power over Ethernet (PoE) standards. Adds PoE capability to a non-PoE Ethernet switch or router. Gigabit LAN ports provide high-speed connectivity. Supports PoE PSE (Power Sourcing Equipment) devices up to 30W. PoE short circuit protection to safeguard network devices. Delivers power and data to PoE devices up to 100 meters (328 feet) over a single Ethernet cable. Reduces installation and equipment costs. Easy plug-and-play desktop or wall-mounted installation. With the use of power injectors, DC power of up to 30W and the data that comes from a non-PoE switch or router are merged together and then transmitted to the IEEE 802.3at/af compliant products such as PoE dome cameras through the Ethernet cabling. Hence, preserving your investment in hardware upgrade without the need for buying extra PoE switches. HARDWARE Ports 1 Port RJ-45 10/100/1000Base-T Input Port 1 Port RJ-45 10/100/1000Base-T PoE Output Port LED Indicators Power and AC Power Input 100-240V AC, 50-60 Hz, 0.6A Dimensions (L x W x H) 155 x 58 x 36 mm Weight 185g POWER OVER ETHERNET Standard IEEE802.3af and IEEE802.3at Power Output DC53V/0.55A Pin Assignment 4/5(+), 7/8(-) Mids-Span (Mode B) ENVIRONMENT Temperature Operating: 0 ~ 40鈩 Storage: -40 ~ 70鈩 Humidity (Non-condensing) Operating: 10 ~ 90% Storage: 5 ~ 90% STANDARDS COMPLIANCE Standards IEEE 802.3 10BaseT Ethernet IEEE 802.3u 100BaseTX Fast Ethernet IEEE 802.3ab 1000BaseT Gigabit Ethernet IEEE 802.3af Power Over Ethernet (PoE) IEEE 802.3at Power Over Ethernet Plus (PoE+) Certifications FCC, CE
