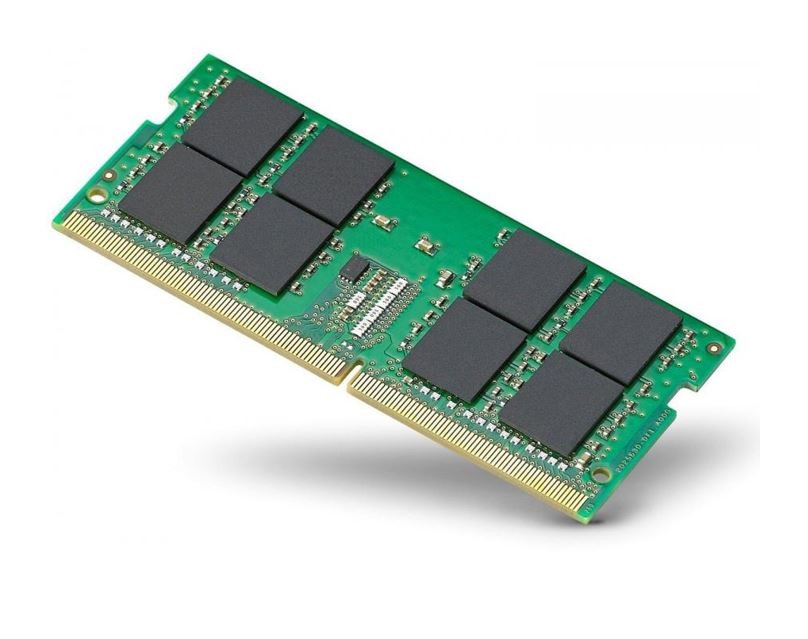

Kingston 16GB (1x16GB) DDR4 SODIMM 3200MHz CL22 2Rx8 ValueRAM Laptop Notebook Memory DRAM
This document describes ValueRAM's KVR32S22D8/16 is a 2G x 64-bit (16GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, non-ECC, memory module, based on sixteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
Features:
� Power Supply: VDD = 1.2V Typical
� VDDQ = 1.2V Typical
� VPP = 2.5V Typical
� VDDSPD = 2.2V to 3.6V
� Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals
� Low-power auto self refresh (LPASR)
� Data bus inversion (DBI) for data bus
� On-die VREFDQ generation and calibration
� Dual-rank
� On-board I2 serial presence-detect (SPD) EEPROM
� 16 internal banks; 4 groups of 4 banks each
� Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)
� Selectable BC4 or BL8 on-the-fly (OTF)
� Fly-by topology
� Terminated control command and address bus
� PCB: Height 1.18' (30.00mm)
� RoHS Compliant and Halogen-Free
