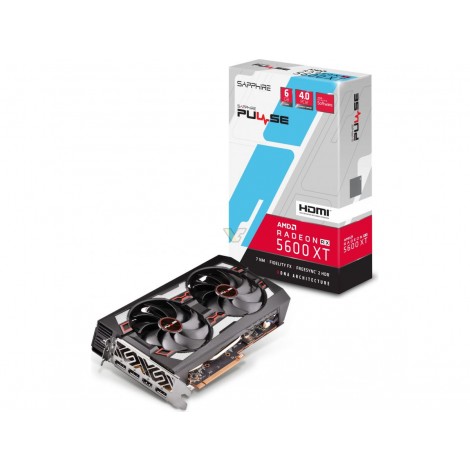

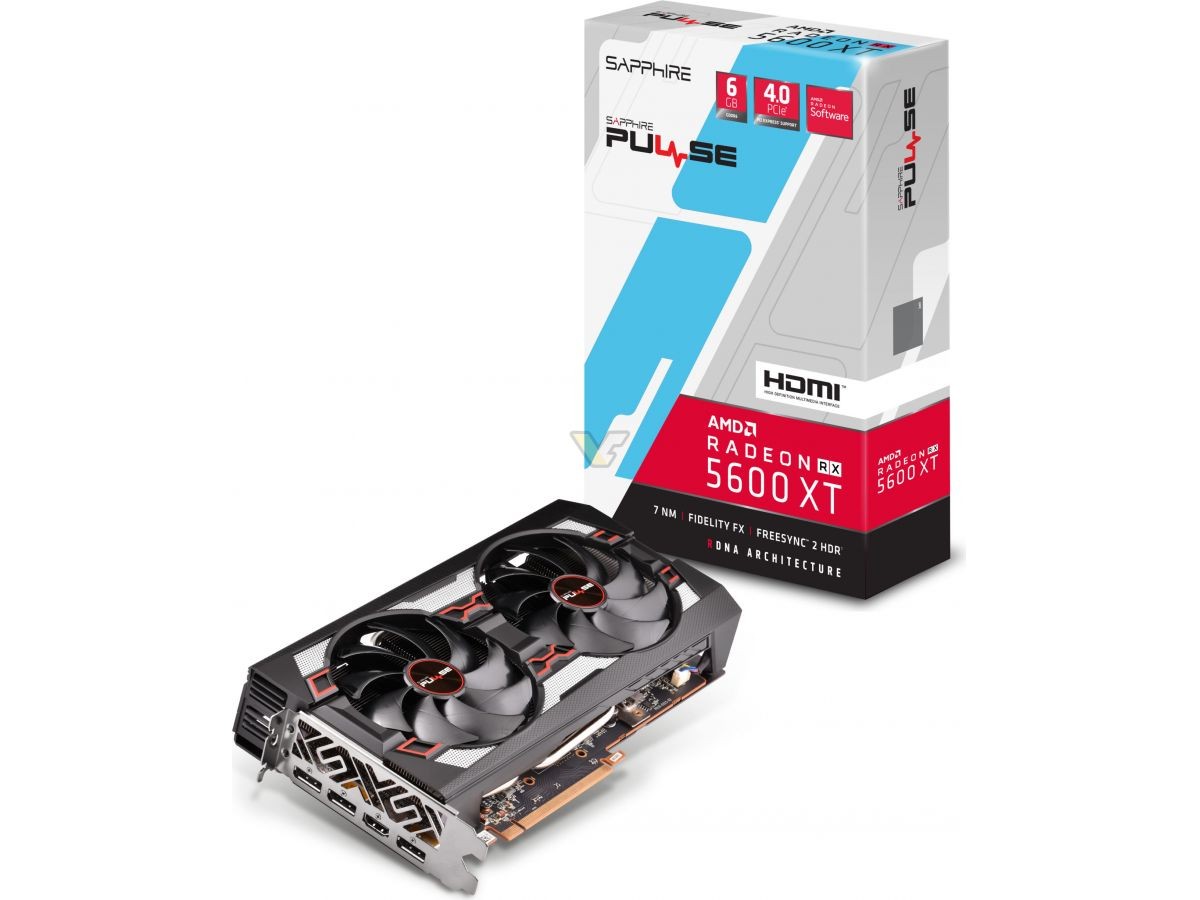

SAPPHIRE AMD RADEON PULSE RX 5600 XT 6G GDDR6 HDMI / TRIPLE DP OC W/BP (UEFI)
***Updated BIOS*** for Pulse RX 5600 XT: increases clock speed to 1750MHZ/ memory speed to 14Gbps. Please visit the following link for instructions under NEW BIOS UPDATE:
https://www.sapphiretech.com/en/consumer/pulse-radeon-rx-5600-xt-6g-gddr6
The SAPPHIRE PULSE RX 5600 XT offers incredible performance at the optimal budget for every gamer. With lightning fast GDDR6 memory and redefined display and media engines, the PULSE RX 5600 XT is the ideal graphics card for 1080p gamers. It is powered by AMD’s extreme RDNA architecture, alongside innovative Dual-X Cooling Technology which keeps the GPU, Memory and VRM components icy cool at low noise levels. The all-aluminum backplate preserves the rigidity of the GPU and guarantees nothing bends, dust stays out and adds another level of passive cooling to dissipate heat. Pivotal SAPPHIRE features like the Quick Connect Fan, Dual Bios Support and Dual Ball Bearing Fans keep your GPU running smooth and stable. Take your gaming to the next level with the SAPPHIRE PULSE RX 5600 XT as the beating heart of your PC!
Original Specs Before BIOS Update
GPU Boost Clock: Up to 1620 MHz
Memory 6GB/192 bit GDDR6. 12 Gbps Effective
Stream Processors:2304
4K@60Hz
Dual-X Cooling Technology
GPU
Radeon™ RX 5600 Graphics
2nd Gen 7nm GPU
RDNA Architecture
Engine Clock
Boost Clock: Up to 1620 MHz
Game Clock: Up to 1560 MHz
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors: 2304
Memory Size/Bus: 6GB/192 bit GDDR6
Memory Clock: 12 Gbps Effective
Displays: Maximum 4
Resolution: HDMI™: 4096×2160@60Hz
DisplayPort1.4: 5120×2880@60Hz
Interface: PCI-Express 4.0
Output: 1x HDMI, 3x DisplayPort
Cooling: Dual-X Cooling, Dual Fan, Two-Ball Bearing
Form Factor: 2.3 slot, ATX
Dimensions: 254 x 135 x 46.5(mm)
