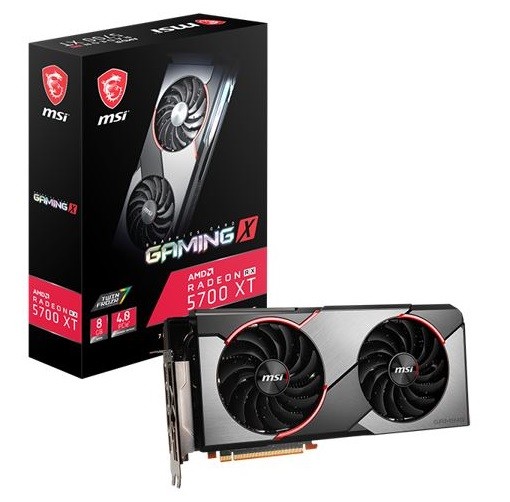

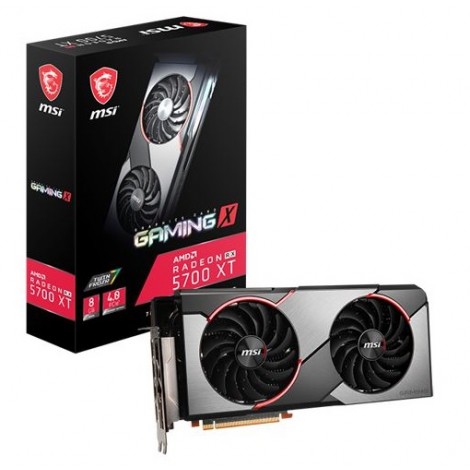

MSI AMD Radeon RX 5700 XT Gaming X 8G GDDR6 PCIe 4.0 Graphics Card 7680x4320 4xDisplays 3xDP HDMI 1925/1630 MHz TORX FAN3.0 auto-tuning

MSI AMD Radeon RX 5700 XT Gaming X 8G GDDR6 PCIe 4.0 Graphics Card 7680x4320 4xDisplays 3xDP HDMI 1925/1630 MHz TORX FAN3.0 auto-tuning

Great gaming experiences are created by bending the rules. The all new RDNA powered Radeon RX 5700 series for exceptional performance and High-fidelity gaming. Take control with Radeon RX 5700 series and experience powerful, accelerated gaming customized for you.
Game Fidelity Accelerated
High-performance RDNA architecture was engineered to greatly enhance features like Radeon Image Sharpening, FidelityFX, and VR technologies3 for maximum performance and jaw-dropping gaming experiences.
Immersive Gaming Dynamics
Get the competitive advantage with dramatically reduced input lag with Radeon Anti-Lag, get stutter-free, tear-free gaming with AMD Radeon FreeSync1 technology, and the latest Radeon Software for incredibly responsive and insanely immersive gameplay.
The New Gaming RDNA Architecture

Model Name Radeon RX 5700 XT GAMING X
Graphics Processing Unit Radeon鈩 RX 5700 XT
Interface PCI Express 4.0
Core Name NAVI 10 XT
Cores 2560 Units
Core Clocks Boost: Up to 1980 MHz
Game: 1870 MHz
Base: 1730 MHz
(Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.)
Memory Speed 14 Gbps
Memory 8GB GDDR6
Memory Bus 256-bit
Output DisplayPort x 3 (v1.4) / HDMI 2.0b x 1
HDCP Support 2.2
Power consumption 225W
Power connectors 8-pin x 2
Recommended PSU 750W
Card Dimension(mm) 297 x 85 x 140 mm
Weight (Card / Package) 1406g / 2037g
Afterburner OC Y
DirectX Version Support 12
OpenGL Version Support 4.5
Multi-GPU Technology Crossfire鈩, 2-Way (Bridgeless)(DX12)
Maximum Displays 4
VR Ready Y
Digital Maximum Resolution 7680x4320
