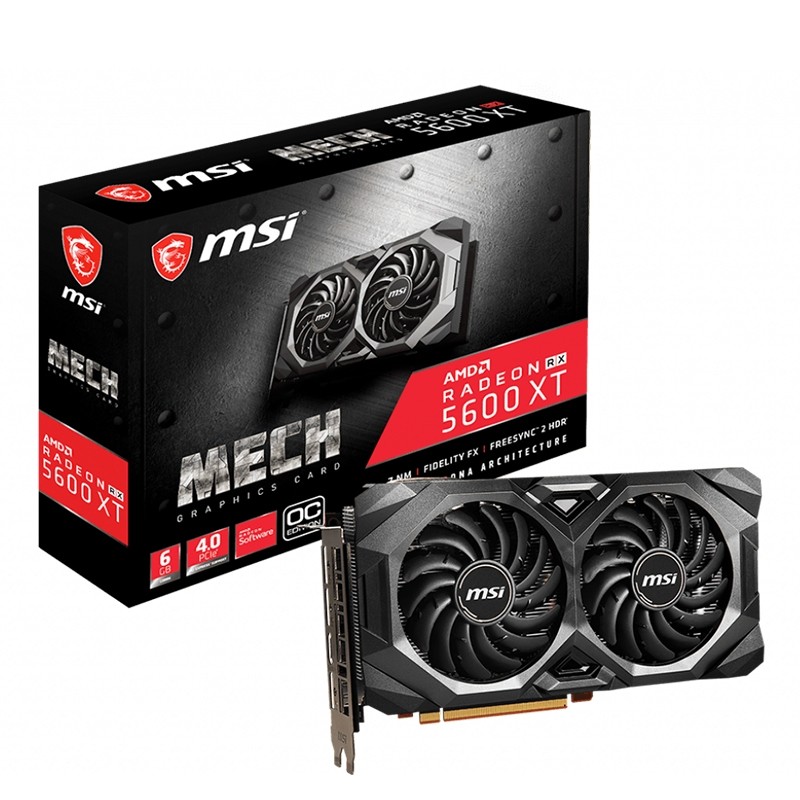

MSI AMD Radeon RX 5600 XT MECH OC 6GB GDDR6 PCIe 4.0 Graphics Card 7680x4320 4xDisplays 3xDP HDMI 1600 MHz 51nm TORX FAN3.0

MSI AMD Radeon RX 5600 XT MECH OC 6GB GDDR6 PCIe 4.0 Graphics Card 7680x4320 4xDisplays 3xDP HDMI 1600 MHz 51nm TORX FAN3.0

Core/Memory

Boost Clock / Game Clock* / Base Clock / Memory Speed
Up to 1600 MHz / Up to 1420 MHz / 1185 MHz / 12Gbps
6GB GDDR6
DisplayPort x 3 / HDMI x 1
TORX Fan 3.0

Dispersion fan blade: Steep curved blade accelerating the airflow
Traditional fan blade: Provides steady airflow to massive heat sink below
Afterburner Overclocking Utility

Kombustor: The latest DirectX versions benchmark supporting.
Predator: In-game video recording.
AMD Radeon FreeSync

Synchronizes the display refresh to your Radeon RX Series GPU for the fast, smooth gaming.

MODEL NAME Radeon RX 5600 XT MECH OC
GRAPHICS PROCESSING UNIT Radeon RX 5600 XT
INTERFACE PCI Express 4.0
CORES 2304 Units
CORE CLOCKS Boost: Up to 1600 MHz;Game: Up to 1420 MHz;Base: 1185 MHz
MEMORY SPEED 12Gbps
MEMORY 6GB GDDR6
MEMORY BUS 192-bit
OUTPUT DisplayPort x 3 (v1.4) / HDMI 2.0b x 1
HDCP SUPPORT Y
POWER CONSUMPTION 150W(This data is not fixed, it may differ by core clocks.)
POWER CONNECTORS 8-pin x 1
RECOMMENDED PSU 450 W
CARD DIMENSION(MM) 231 x 127 x 46 mm
WEIGHT (CARD / PACKAGE) 790g / 1232g
DIRECTX VERSION SUPPORT 12
OPENGL VERSION SUPPORT 4.6
MULTI-GPU TECHNOLOGY Y
MAXIMUM DISPLAYS 4
VR READY Y
DIGITAL MAXIMUM RESOLUTION 7680x4320
